This 80-ton AGV is a powerful and innovative tool that can revolutionize your heavy-duty transport needs.But what exactly makes this automatic guided vehicle so special? Let’s have a deep understanding of its unique advantages, product specifications and main applications.
What is an 80-Ton Range-Extended Heavy-Duty Unmanned AGV?

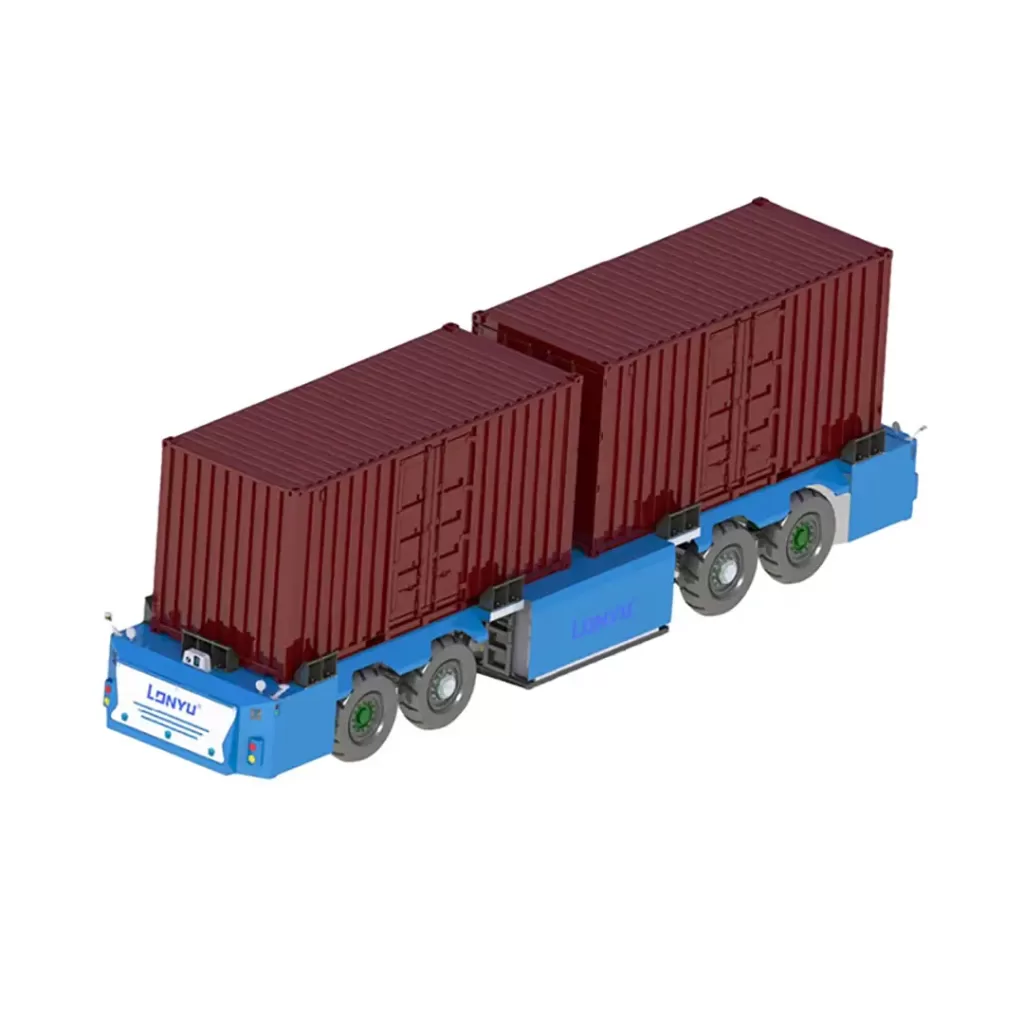

The AGV is a high-capacity vehicle. It can load a lot of things. The maximum load is 80 tons, which is not a joke. Think about those huge sea containers you saw in the ports. This AGV can easily pick them up and then move them. It’s also very suitable for transporting large machines used in factories. These machines are usually too heavy for ordinary vehicles to carry, but there is nothing wrong with this AGV. When it comes to bulk materials such as sand, gravel or coal, it can transfer a large amount of materials at a time.
Unique superiority
1.Mixed voyage expansion
One of the outstanding characteristics of this automatic guided vehicle is its hybrid range expansion technology. By using biofuel methanol as the main fuel, it can achieve an amazing cruising range of 800-1000 kilometers on a single refueling, which takes less than 15 minutes . This eliminates the delay associated with battery charging, which is a common disadvantage of conventional electric AGV.
2.Cost Efficiency
Compared to diesel substitutes, the fuel cost of this heavy-duty transport vehicle is 30% lower.(Source:https://www.iea.org/) This cost-effectiveness stems from the efficient use of biofuel methanol, which not only reduces operating expenses, but also minimizes the impact on the environment.
3.Multi sensor navigation
The navigation system of this AGV is a miracle of modern science. Just like a super smart brain, it combines several advanced methods. It uses Beidou (China’s global navigation satellite system), inertial navigation (to help it know its position according to internal sensors), laser SLAM (a method of creating environmental maps by using lasers), visual navigation (to see where it’s going with a camera) and AI navigation (to make wise decisions by artificial intelligence). All these work together to ensure that AGV moves with an amazing accuracy of 30mm, and it can be well protected even in harsh and harsh environments, such as dust or wet places. Its protection level is between IP 54 and IP 65, which means it can block dust and water. This high precision is very important when the AGV must pass through narrow spaces and complex industrial areas.
4.Heavy – duty maneuverability
This AGV is just like a strong and agile athlete. It has a four – axle steering system and two 135 kw motors. These give it a huge peak torque of 5500 n. M. That means even when it’s carrying a full load, it can still make sharp turns easily. It can reach a top speed of 36 km/h, which is pretty fast for such a heavy – duty vehicle. The special design of the steering drive shaft and the heavy-duty hydraulic steering system enable it to move in a very agile way. This not only helps it move quickly, but also improves the overall operating efficiency in industrial environment.
5.Security and compliance
In the industrial environment, safety is the most important, and this AGV has not let people down. It conforms to global deployment standards formulated by CE, UL, EAC and SGS, and ensures that it meets strict international security requirements. This certification not only protects operators and the environment, but also benefits global deployment.
Technical Specifications
| Parameter | Value |
| Vehicle Size | 14 m (length) × 3 m (width) × 1.7 m (height) |
| Ground Clearance | 0.5 meters |
| Wheelbase | 8.5 m |
| Tire Diameter | 1.4 m |
| Drive Structure | 8 * 4 (Four-Bridge Eight-Wheel) |
| Motor Power | 135 × 2 kW |
| Cruising Range | 800-1000 km (biofuel methanol) |
| Filling Time | ≤ 15 minutes |
| Navigation Accuracy | ± 30 mm (Path Planning) |
| Protection Grade | IP 54, IP 55, IP 65 |
Key Application
1.Transformers
In the transformer industry, it is a daunting task to transport huge and sophisticated components. The 80-ton extended-range heavy unmanned AGV provides a reliable solution to ensure safe and efficient transportation within manufacturing facilities and between stations. Its precise navigation and heavy-duty capabilities make it ideal choice for dealing with transformers of various sizes.
2.Storage tank
The energy storage industry needs a durable transportation solutions to cope with the heavy cabinets. This AGV can easily carry a lot of loads, and its extended range makes it very suitable for transporting energy storage devices in large industrial complexes. Its multi-sensor navigation ensures safe passage through complicated layouts.
3.Wind Power generation
In the field of wind power generation, transporting large turbine components is very important. These components, such as blades that can stretch for tens of meters, huge engine room for generator and gearbox, and towers, are not only bulky, but also extremely heavy. It is a great challenge to transport them safely and accurately to the right place in wind farm.
Common problems
Q1: What is the maximum speed of an indoor AGV? Under what circumstances is it recommended not to exceed 30m/min?
A: The speed of an indoor AGV is 0-60m/min. Considering the general production environment, personal safety and the weight of goods loaded by AGV, it is suggested that the speed should not exceed 30 m/min.
Q2: What kind of batteries are usually used in autonomous vehicles, and what is their voltage selection?
A: Commonly used batteries in AGVs include maintenance-free lead-acid batteries, lithium iron phosphate batteries, and ternary lithium batteries. The voltage options are usually 48 v and 96 v, depending on the required load capacity.
Q3: What is the battery capacity commonly used in AGV and how to determine it?
A: The battery capacity is usually between 50 and 50-1000 AH. According to the factors such as motor power, wheel diameter, climbing ability, maximum speed, running time (empty return/full load). For example, a commonly used 100-ton AGV has a battery capacity of 96 v 300 AH and can run for 4 hours under no-load and full loads conditions.
Q4: What does “AH” stand for in terms of battery capacity? How is it worked out?
A: “AH” stands for ampere hour, which means the amount of current that the battery can provide in one hour. For example, a 100 AH battery can provide 100 amps of current per hour.
Conclusion
By combining cutting-edge technology with robust design, the 80-ton extended-range heavy unmanned AGV is expected to be completely transformed.Its unique advantages, coupled with its versatility in various industrial applications, make it an indispensable asset for modern manufacturing and logistics business.
